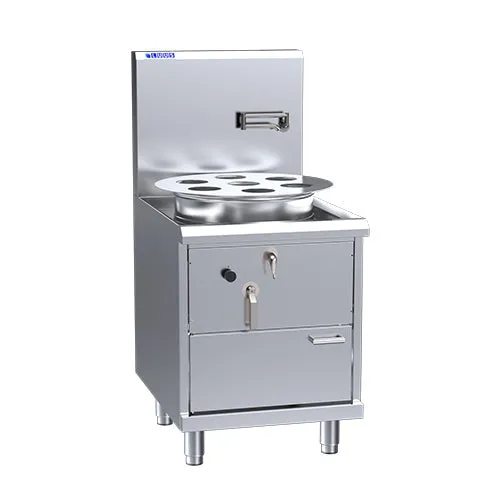

LUUS Asian Auto-Refill Yum Cha Steamer 600mm - YCA-1

• Ideal for high volume dumpling/dim sum steaming
• Incredible 800mm space saving depth
• Powerful mongolian burner for maximum steam output
• Internal heat exchanger for maximum efficiency
• Automatic water refill mechanism for easy operation
• 7 hole steamer plate suitable for bamboo baskets
• Durable Zinc-aluminium Alloy burner handle
• 304 grade high quality stainless steel panels
• Interchangeable Rice Roll attachment (optional extra)
• 24 month ‘Platinum Warranty’
• Easy to clean and service
Note: Specify if you require Natural Gas or LPG at checkout

Compact Auto-Refill Yum Cha Steamer

• 123 mj 32 jet mongolian burner with piezo, pilot & FFD
• In-built auto-refill mechanism with stainless steel float
• Four internal 304 stainless steel heat exchange tubes
• 1.5mm 304 stainless steel water tank
• 1.5mm 304 stainless 7 hole steamer plate
• Front gutter design for easier cleaning
• Zinc-aluminium Alloy burner handles

Overall Construction

• Heavy duty construction
• 1.5mm 304 stainless steel deck
• Splashback 1.2 mm 304 stainless steel
• Front cover, door and hob 1.2mm 304 stainless steel
• Side panels 0.9mm 304 stainless steel
• Stainless steel legs with 55mm height adjustment range

Dimensions

• 600mm x 800mm x 1300mm H
• Working height 845mm
• Weight 95kg
• Packed dimensions 650mm x 900mm x 1470mm H
• Packed weight 115kg

Connections

• Gas 3/4” BSP male
• Gas 65mm from left, 70mm from rear, 160mm to floor
• Supplied with gas regulator (specify Nat or LP on order)
• Water inlet 1/2” copper tube
• Water 35mm from right, 70mm from rear, 160mm to floor
• Drain 1 3/4” tube
• Drain 110mm from left, 70mm from rear, 305mm to floor

Cleaning & Servicing

• Easy access to all parts & components from front
